Layer-by-Layer Deposition Robots

R_und_K Home

DR 0: The economical solution.

  • Dipping device, 2 independently moveable axis, mounted on an open, triangular frame.
  • Accessible space: ca. 50cm x 30cm
  • Size of apparatus: ca. 70cm x 60cm x 80cm

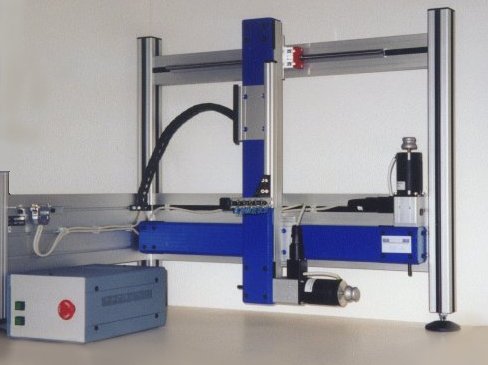

DR 0: Economical Dipping Robot

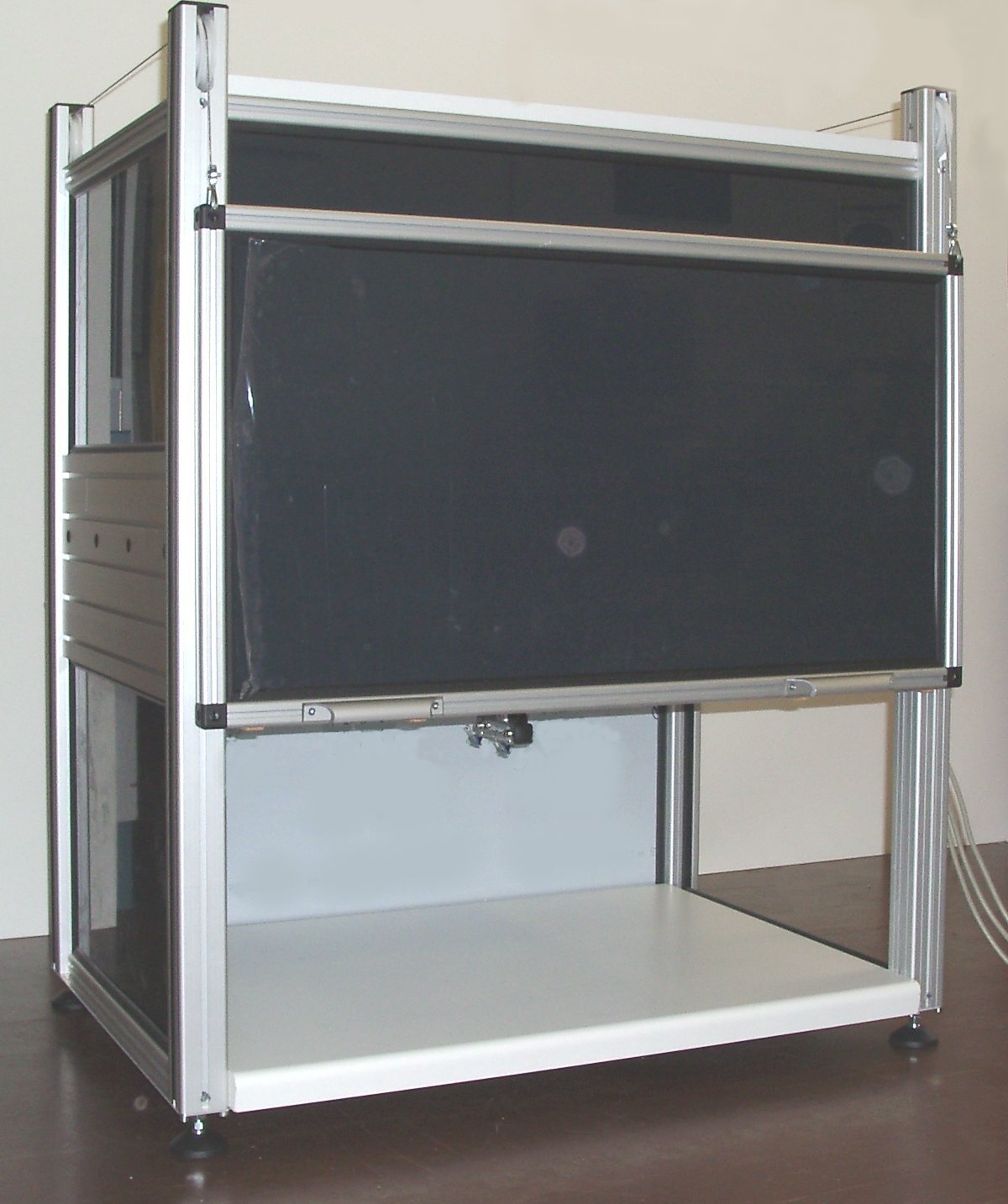

DR 3: The Standard Table Top Model

Based on our long lasting experience we have developed a Lay-by-Layer deposition robot (LbL-Robot) which really meats your requirements:
  • 3 freely and independently moving axis, mounted in a closed frame which forms a dust cover including a sliding front door.
  • Additional equipment (like heater, stirrer, cooler, etc.) can be placed into the cabin and used for the deposition procedure.
  • A software that speaks your language! Define the deposition process as you plan it in your labnotes: A command like (PAH + PSS)*12 will result in 12 double layers of PAH and PSS.
  • Traverse path of the axes: ca. 55cm x 25cm x 25cm.
  • Size of apparatus: (l x w x h) 90cm x 62cm x 110cm.
  • Weight: approx. 70 kg.
  • Fits on almost any standard chemistry or physics lab bench.
Click for large view

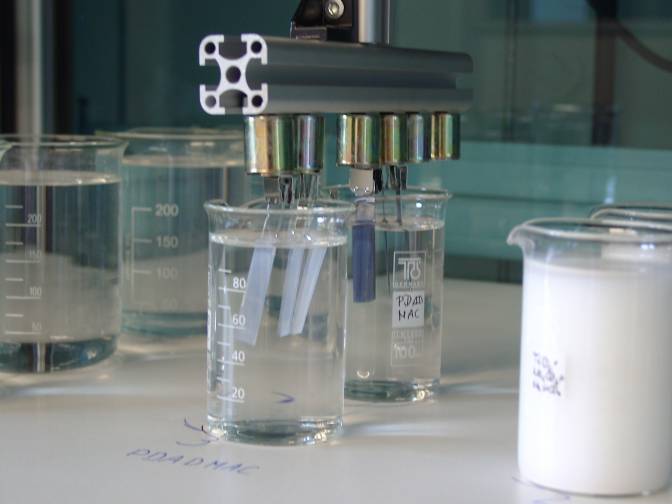

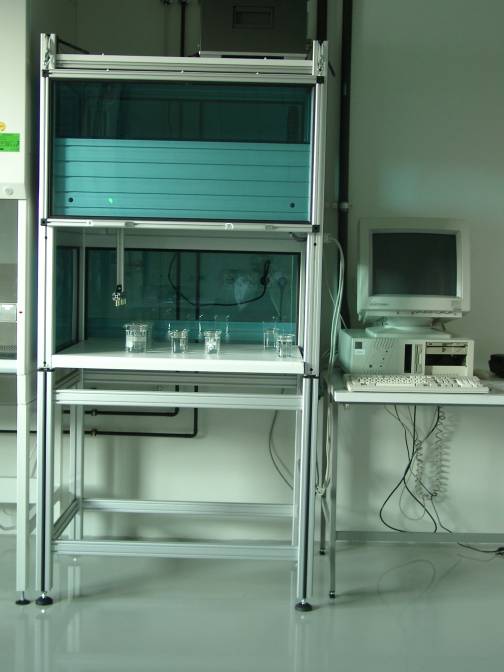

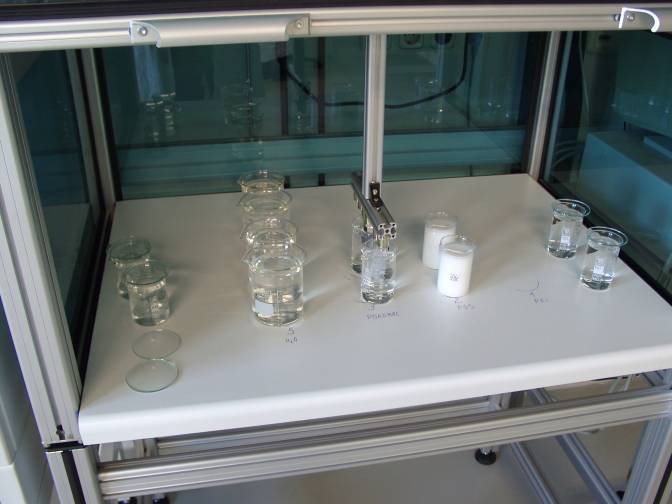

DR-3 as free standing model A view on the workbench Detailled view of sample holders
